Meanwell Outdoor Constant Power Street Light LED Driver IP67 XLG Series 50W - 240W

Name: Meanwell Outdoor Constant Power Street Light LED Driver IP67 XLG Series 50W 240W
Brand: MEANWELL
Price: 1 USD

China Meanwell Outdoor Constant Power Street Light LED Driver IP67 XLG Series 50W - 240W wholesale

Brand Name : MEANWELL

Model Number : XLG SERIES

Certification : SGS,ROHS

Place of Origin : Shenzhen,China

MOQ : 1

Payment Terms : T/T,PAYPAL,Western Union,Money Gram

Supply Ability : 5000pcs/months

Delivery Time : 3-4 working days

Packaging Details : Cartons

Output Power : 50/75/100/150/200/240W

Output Frequency : 50/60 Hz

Input Voltage : 90-305VAC

Output Current : 530-2100mA

Protection : Short Circuit/Overload/Over Voltage

Dimming Method : PWM/Analog

Voltage Range : 110-250V AC

Nominal Input : 120 Vac or 230 Vac

Usage : Industry, Construction

Output : 4.2V DC / 40A

Ip Rating : IP67

Contact Now

Stock Meanwell Outdoor Ip67 XLG Series 50W 75W 100W 150W 200W 240W Constant power Street Light Led Driver

Product Description

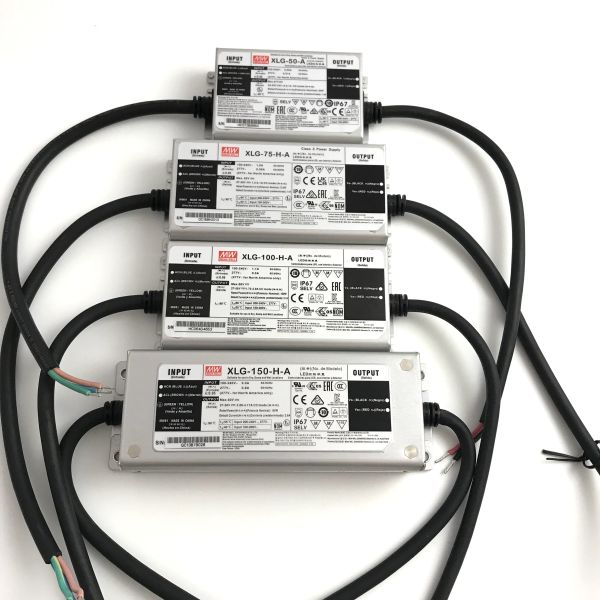

Meanwell Outdoor Constant Power Street Light LED Driver IP67 XLG Series 50W - 240W

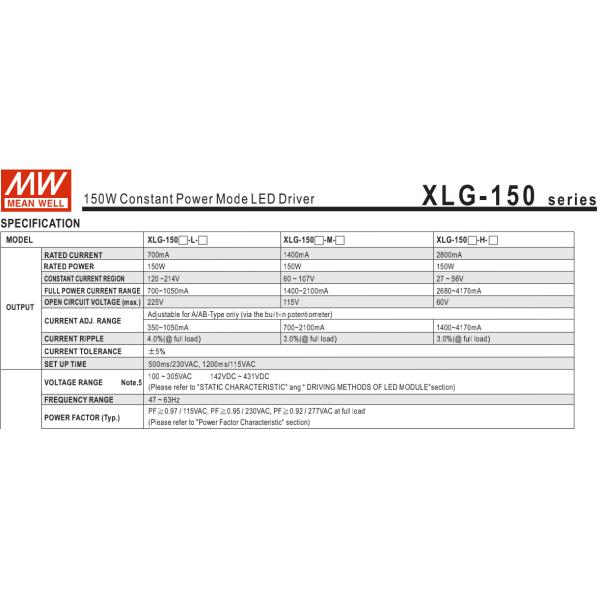

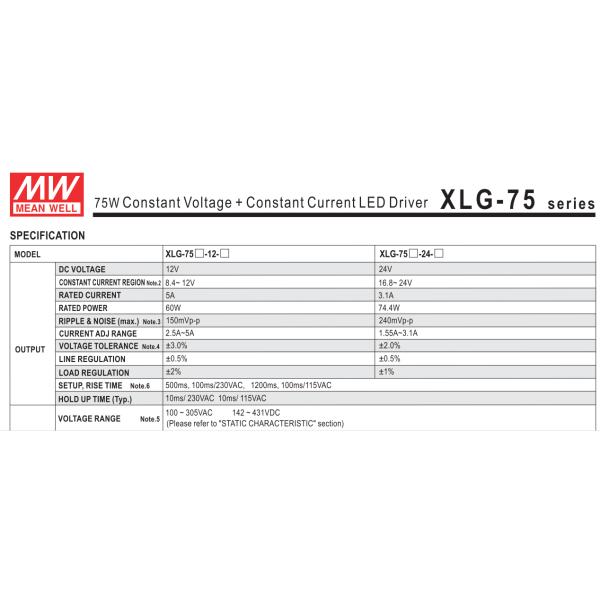

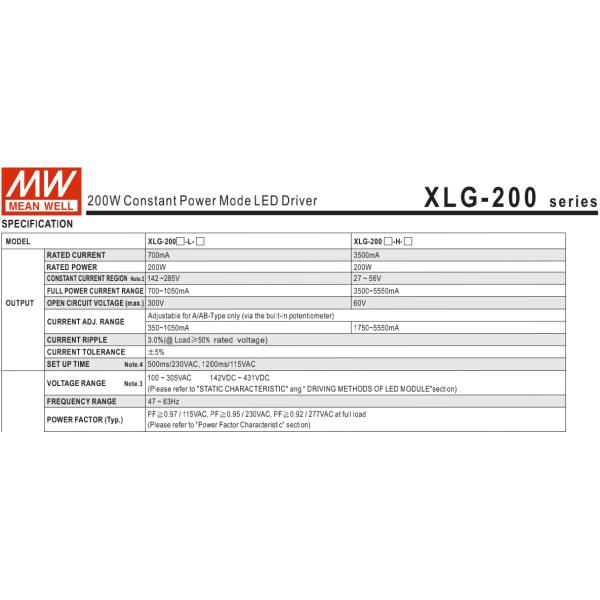

MODEL NO.:	XLG-20/25/50/75/100/150/200/240-H/L/M-A
POWER:	20-240W
INPUT VOLTAGE	100~305VAC
APPLICATIONS:	Street lighting, bay lighting, flood lighting, architectural lighting

Meanwell Outdoor Constant Power Street Light LED Driver IP67 XLG Series 50W - 240W

Wattage :
 20W~240WFeatures :
 1, Wide input range 100~305VAC (90~305VAC for XLG-20)
 2, Constant power mode with adjustable output current (Constant current mode for XLG-20)
 3, Built-in active PFC function and Efficiency up to 90%
 4, Dimming functions with 3 in 1
 5, Protections: Short circuit/ Over voltage/ Over temperature
 6, Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20
 7, 5 years warranty


Meanwell Outdoor Constant Power Street Light LED Driver IP67 XLG Series 50W - 240W

Application

Meanwell Outdoor Constant Power Street Light LED Driver IP67 XLG Series 50W - 240W
